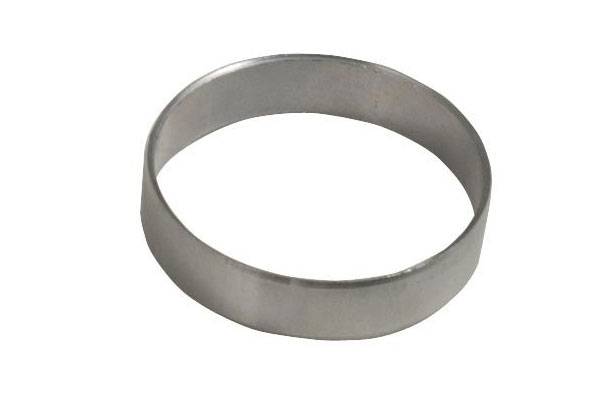

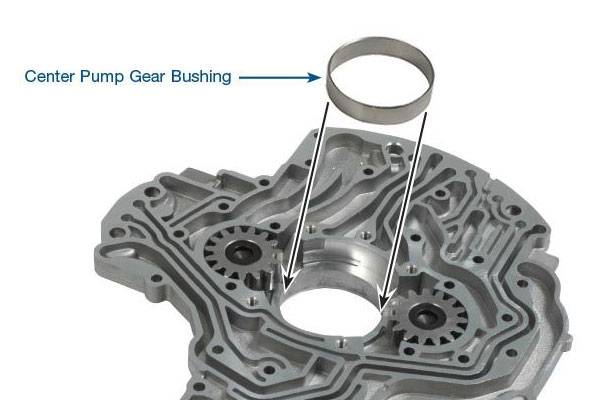

Center Pump Gear Bushing

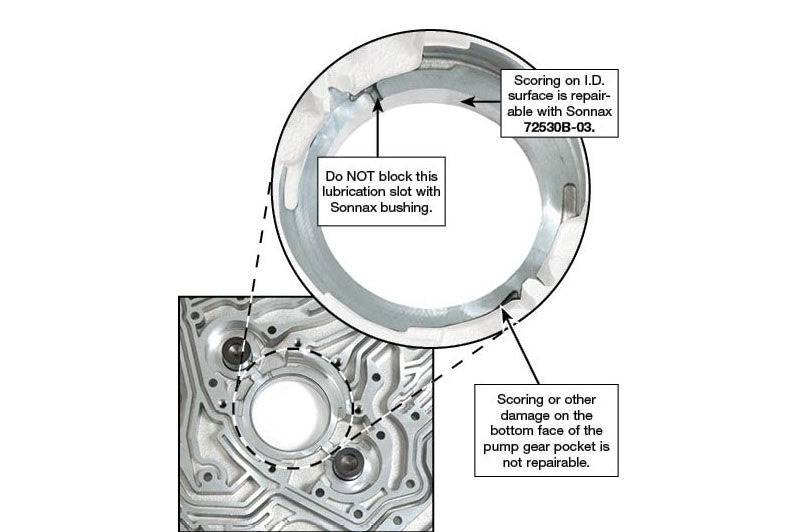

Chrysler 68RFE pump bodies are frequently found to have a scored bearing surface or pump wear and fractures where the center gear drive flange passes through the pump. The Sonnax center pump gear 72530B-02 and/or bushing 72530B-03 salvages pumps with this type of wear. The score damage is machined out of the pump when the center pump gear bore is oversized to accept a precision, steel-backed aluminum bushing.

• Allows salvage of pump bodies scored at center gear bearing surface
• Redesigned center gear drive flange reduces turbine hub engagement play and noise
• The correctly installed steel-backed aluminum alloy precision bushing extends pump life
